UI Review powered by snapshots

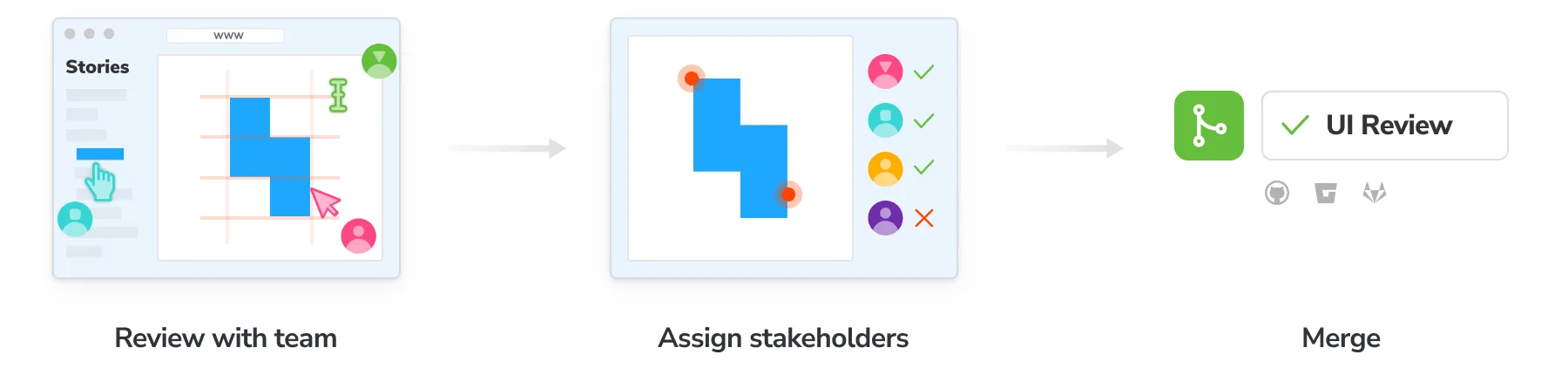

As Chromatic’s second core workflow, UI Review streamlines the process of getting approval and feedback on visual changes from designers, product managers, and other key stakeholders. While UI Tests safeguard you from unintentional bugs, UI Review is where you discuss intentional changes with your team, ensuring everyone aligns with their expectations before you ship.

Each UI Review is linked to a pull/merge request, streamlining the workflow. Here’s how it works:

• Automated trigger: When you open a pull request and run a Chromatic build via CI, Chromatic starts the UI Review workflow.
• Visual diffing: Chromatic generates a changeset highlighting the exact visual differences between your feature branch and the main branch. You can use the same diffing tools from UI Tests to evaluate these changes.
• Collaborative review: Easily assign one or more reviewers to provide feedback on the visual changes.
• Checklist for clarity: All change requests are tracked within a convenient checklist attached to the Review.

Enable

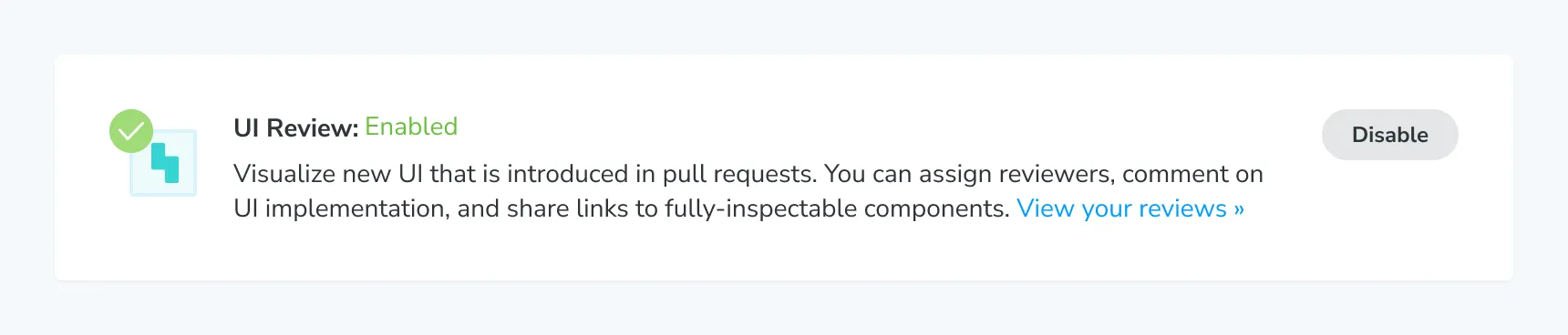

Enable UI Review for your project on the Manage screen.

Once enabled, visit the Reviews tab in the web app sidebar. There you’ll be prompted to install the GitHub app or webhooks for GitLab/Bitbucket.

Understanding the Review

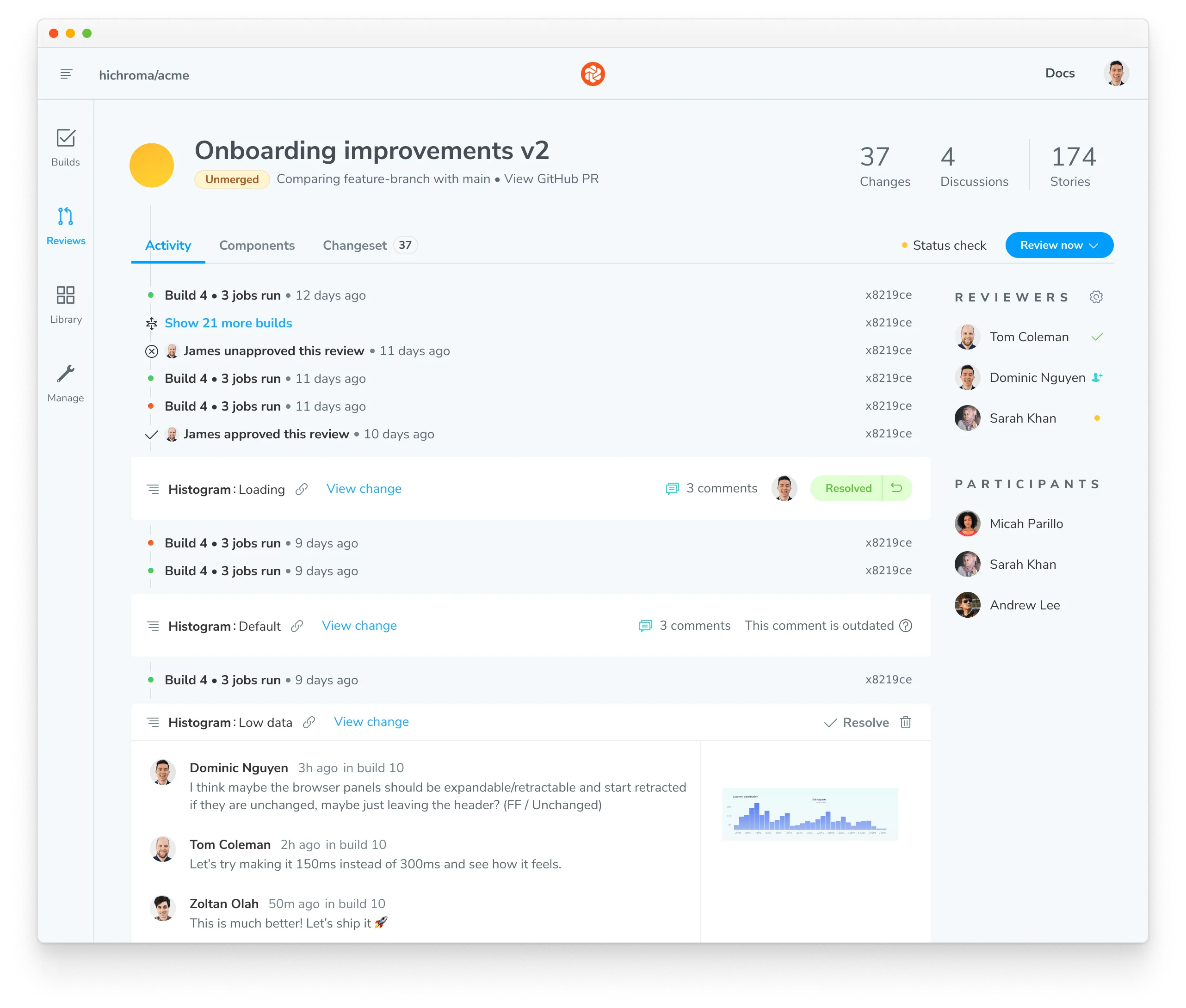

Once a Review has been created—either manually or through CI—navigate to the Reviews tab and select the appropriate Review. You will then land on the Activity tab, which shows a timeline of builds, active discussions, and Review status. This showcases what needs to be done in the Review process.

Invite teammates

Invite other developers, designers, PMs, and stakeholders to help review changes. This closes the feedback loop between disciplines and helps you find the answer to “does this look right?”

If you linked your project to GitHub, Bitbucket, or GitLab, your project permissions are synced so collaborators can sign in to review immediately. If your project is unlinked, use the project invite code to add collaborators.

Assign reviewers

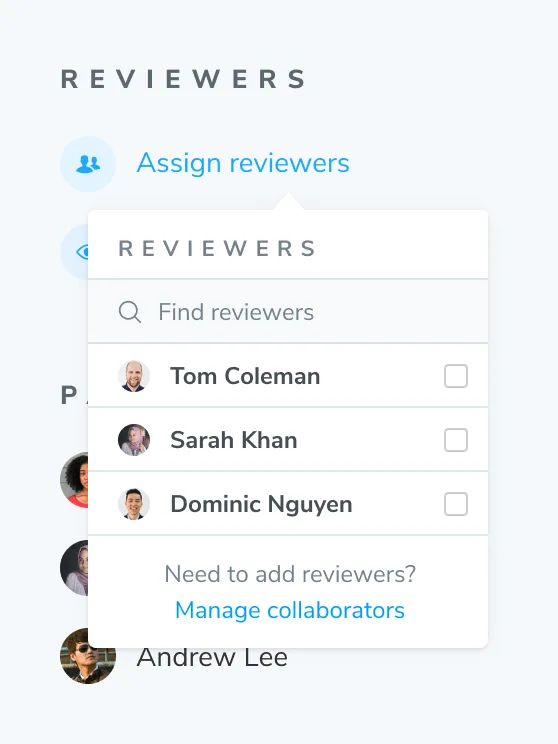

Use the Assign Reviewers link on the Review’s Activity screen to choose reviewers from the project’s collaborators. Reviewers will be emailed a link to the Review screen to begin their review.

Default reviewers

If you find you’re always assigning the same reviewers, you can set default reviewers for your project. Default reviewers will be automatically assigned to new Review. You can also assign additional reviewers on a per-Review basis.

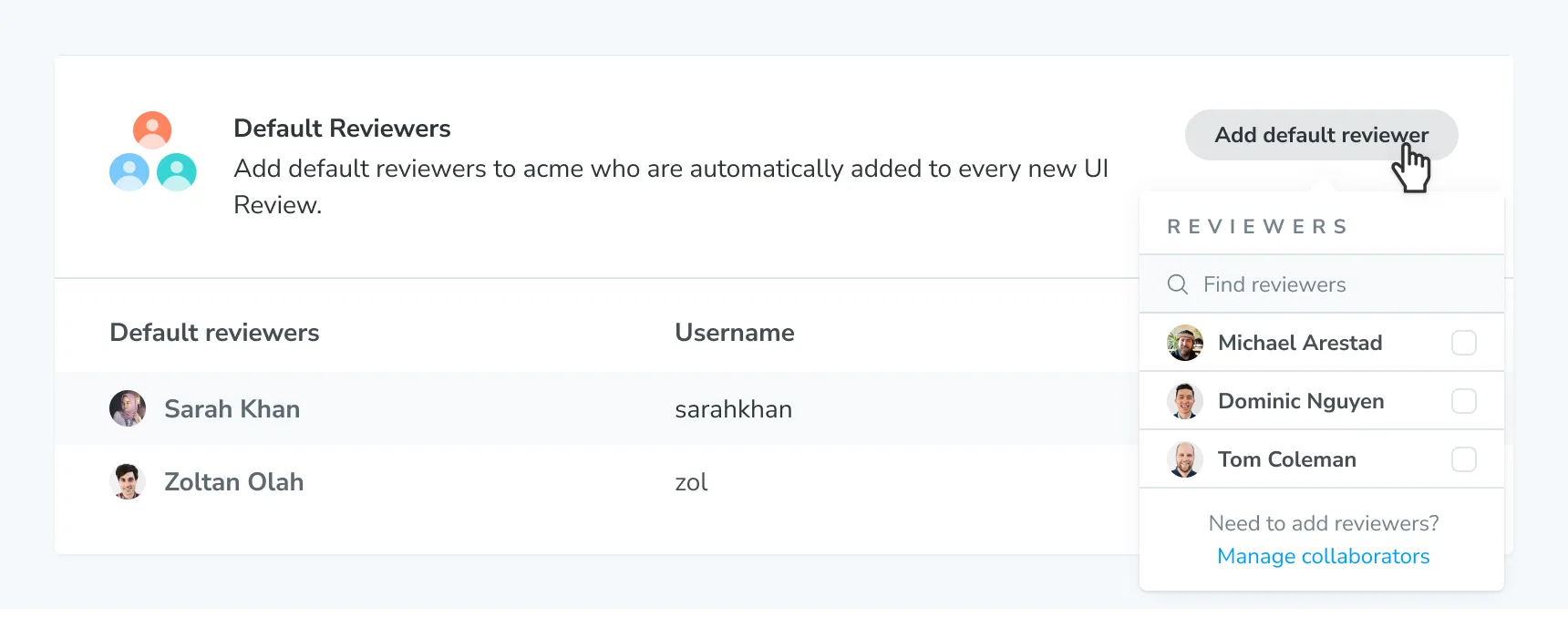

Add default reviewers on your project’s Manage page. Go to the Review section to add a default reviewer.

Remove a default reviewer by clicking “Remove” beside their name. This will remove them as default reviewer but not from the project.

Review the changes

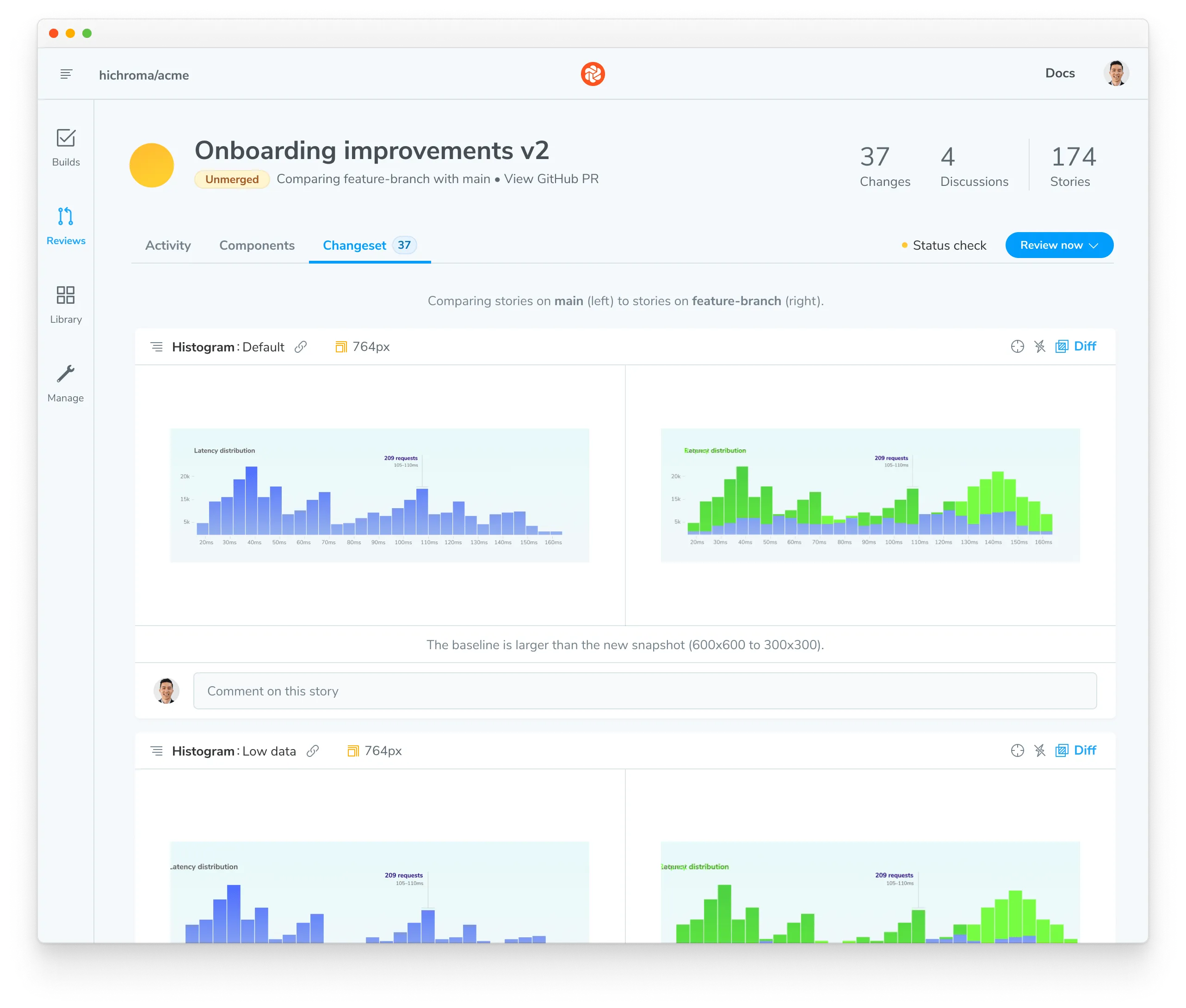

The Review screen includes a Changeset tab showing a side-by-side view of all visual changes introduced on your head branch. It compares the UI on the head branch to the base branch.

Discussions

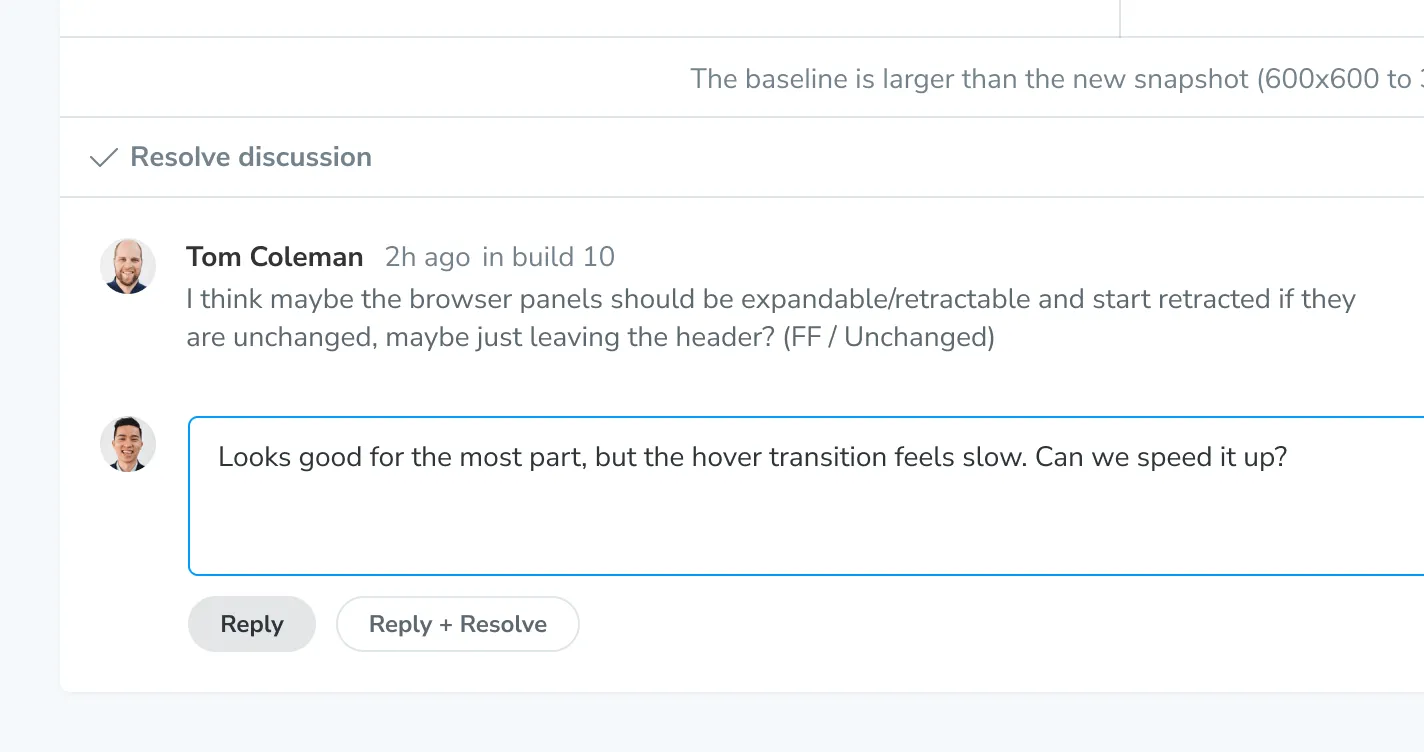

Reviewers can request updates to the implementation via the comment box beneath each change. Discussions are threaded and attached to the specific snapshot represented by the change.

UI checklist

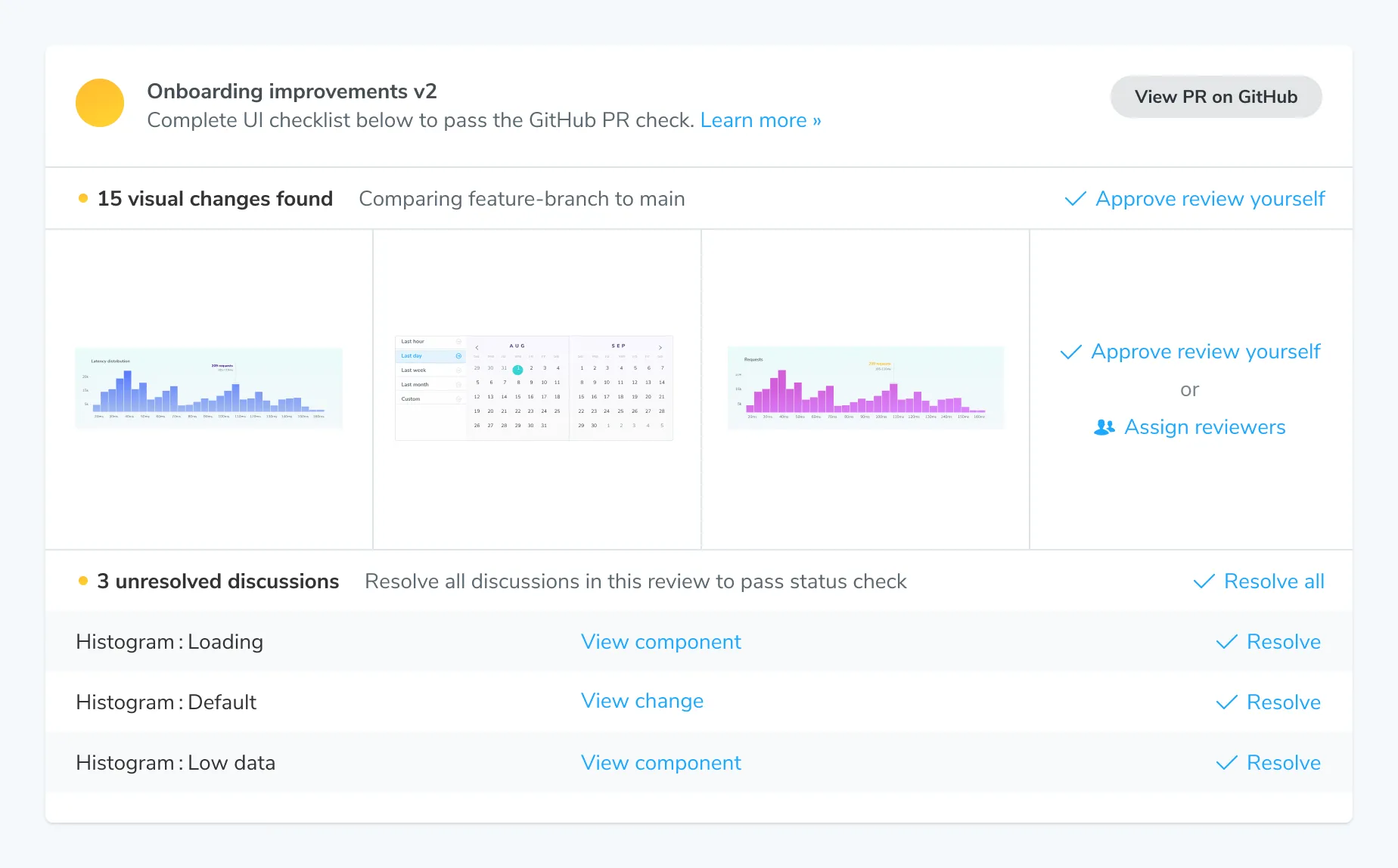

At the bottom of the Review screen’s activity tab is a list of tasks that must be completed before UI is ready to be signed off on. If changes are found, the Review will enter the 🟡 Pending state. When changes are approved and checklist items are complete, the Review will be 🟢 Passed. Here’s how to resolve these tasks:

1. Changeset must be approved → Assign reviewers or approve yourself.
2. Outstanding discussions must be resolved → Click ‘Resolve’ on discussions.
3. All assigned reviewers must approve → Click ‘Approve’ in the Review screen tab bar.

PR check for “UI Review”

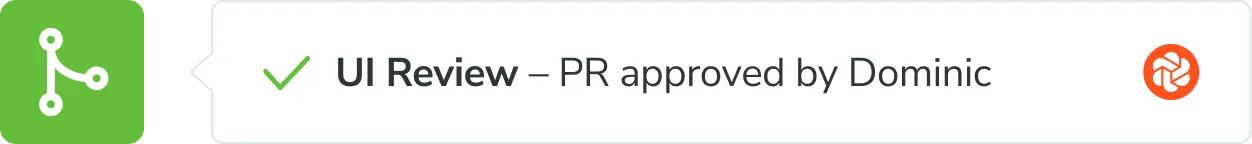

You’ll get a ‘UI Review’ status check for each PR that shows the state of the UI Checklist. Require the check in GitHub, GitLab, or Bitbucket to ensure that impactful changes are considered by the team before merging.

Integrate Chromatic into your CI pipeline »

Pull requests from forks

Chromatic supports UI Test and UI Review across forks, but there’s some caveats. First, it only works with CI integration configured to also build PR branches from forks. Secondly, you must expose your project token so that forks can use it. The easiest way to do that is to simply include it in in your package.json, for example:

{
  "scripts": {
    "chromatic": "chromatic --project-token <CHROMATIC_PROJECT_TOKEN>"
  }
}

If you use a CI provider other than GitHub, you can still use an environment variable. Just make sure your CI is configured to also build forked branches. The project token does not grant access to the project (it can only retrieve a strict set of insensitive data), but it does allow running new builds which count against your snapshot quota.
